Description

Features

The EMC Industrial heavy duty Mobile Loading Ramp capacity is 10 tons, The unique design ensures that the forklift can operate stably on it, Two strong wheels make the platform easier to move.

Specifications

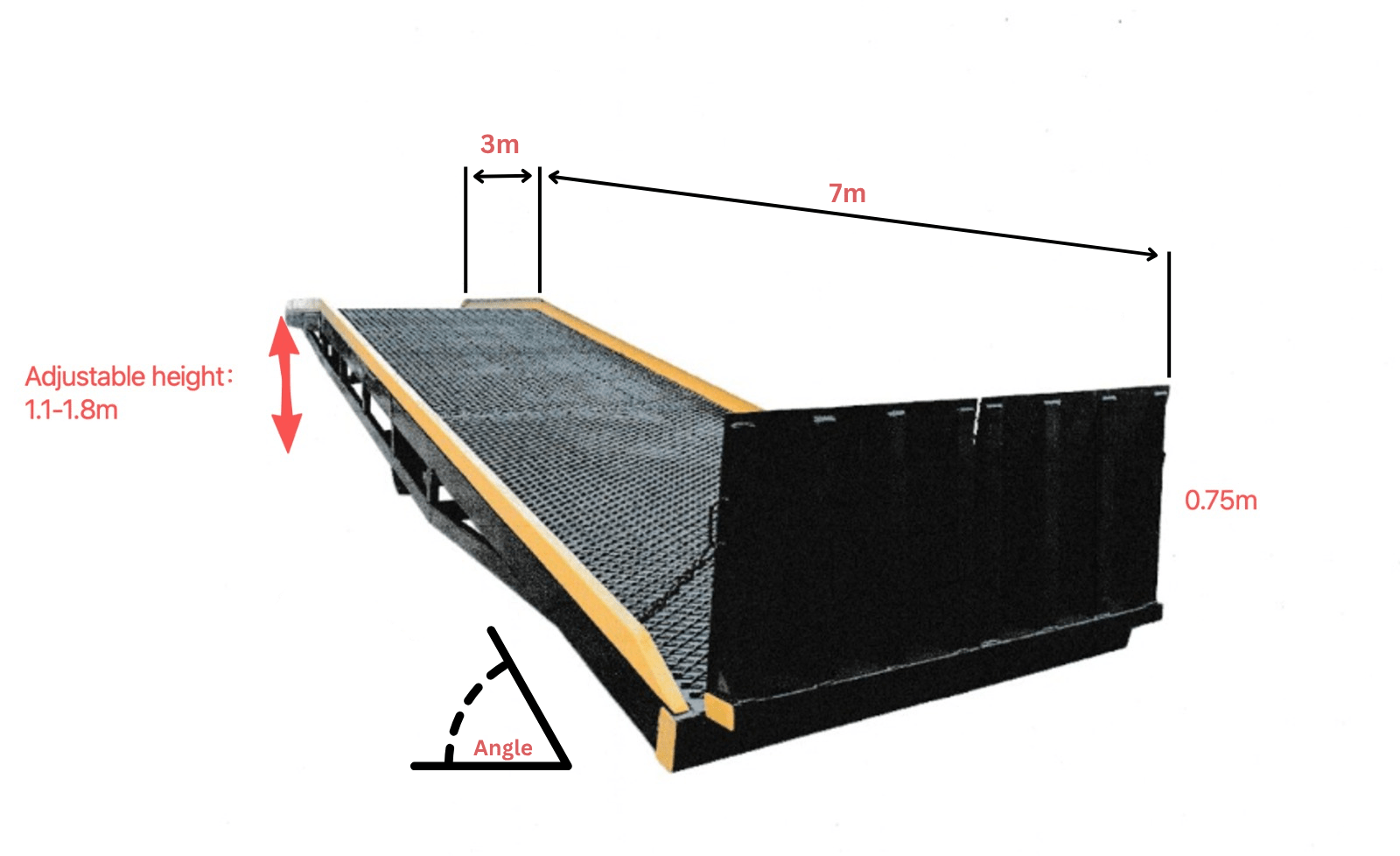

• Overall size: L439”×W83”×H43”
• Deck: Upper:8mm High-strength Steel Nets, Bottom:3mm High-strength Steel Plate
• Oil Cylinder: Φ80mm×Φ50mm×2
• Front Lip: 400mm long, 14mm steel plate
• Wheels: 600-9×2 Solid Tires
• Front legs: Mechanical adjustable legs

Packing Details

• Package dimensions: 439”(L)*83”(W)*43”(H)
• Package weight: 5280 lbs  User Operation Manual

User Operation Manual, Click here…
